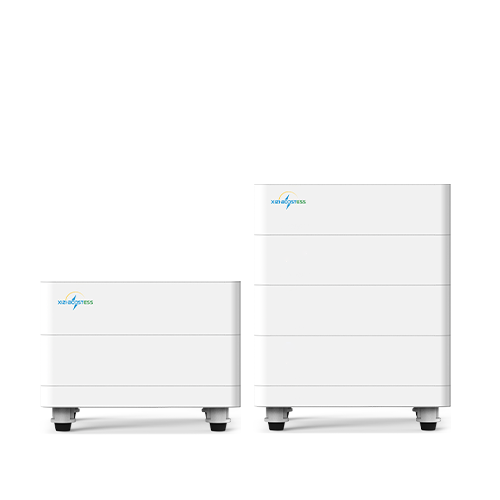

Name: 51.2V Stack Lithium Battery
Brand: https://boost-ess.com/
SKU: 00149
Availability: InStock
Rating: 5 (1 reviews)

Description BOOST-LFP 5000 BOOST-LFP 2400

Description

●High energy efficiency Energy efficiency (charge and discharge ) >97%
●More Safety Dual hardware & Triple software protection
●Smart Design Easy installation，Plug in & off
●High Rate Charge & Discharge 2.4kWh\|Noml/Max 0.3C/0.4C 5kWh\|Noml/Max 0.6C/0.8C
●More Smart With digital monitor system App with WIFI
●More Quiet Without fan, more quiet and reduce the risk of fan failure

BOOST-LFP 5000

Technical Properties

Model	BOOST-LFP 5000
System Parameters
Total Energy*	5.1kWh
Usable Energy(DC)*	4.6kWh
Nominal Dis-/Charge Power	3.0kW
Peak Power(Only Discharge)	6kW for 3s
Constant Current(Only Discharge)	80A
Voltage	48~56Vd.c
Nominal Voltage	51.2Vd.c
Nominal Current	60A
Max. Charge Voltage	57.6Vd.c
Weight	58kg
Dimension(mm)	556552141mm(WDH)
Max. recommended DOD	90%
Operating Condition	Indoor
Operating （charge）	From 0~50℃
Temperature（Discharge）	From -10~55℃
WIFI Frequency Range	2400MHz~2483MHz
Humidity	＜60%(No condensed water)
Pollution Degree	3
Over Voltage Category	II
Cooling Type	Natural cooling
Case Material	Meta
Color	White
Installation	Ground Installation
IP rating	IP 54
Protective Class	I
Warranty	10 years
Communication	CAN/ RS485
Protection Mode	Dual hardware protection
Battery Protection	Over-current/Over-voltage/Short circuit/ Under-voltage/Over temperature
Cycle Life	≥7000 cycles (@25±2°C, 0.6C / 0.8C, 100%DOD, 70%EOL)
Safety	Cell CE+CB
Safety	Pack TUV(IEC 62619, IEC 62040-1)
Hazardous Material Classification	9
Transportation	UN 38.3
● Testing conditions based on temperature 25℃ at the beginning of life. ● Total Energy/Usable Energy measured under specific conditions from BOOST 0.2C CC-CV

BOOST-LFP 2400

Technical Properties

Model	BOOST-LFP 2400
System Parameters
Total Energy*	2.4kWh
Usable Energy(DC)*	2.2kWh
Nominal Dis-/Charge Power	1.5kW
Peak Power(Only Discharge)	3kW for 3s
Constant Current(Only Discharge)	40A
Voltage	48~56Vd.c
Nominal Voltage	51.2Vd.c
Nominal Current	30A
Max. Charge Voltage	57.6Vd.c
Weight	40kg
Dimension(mm)	556552141mm(WDH)
Max. recommended DOD	90%
Operating Condition	Indoor
Operating （charge）	From 0~50℃
Temperature（Discharge）	From -10~55℃
WIFI Frequency Range	2400MHz~2483MHz
Humidity	＜60%(No condensed water)
Pollution Degree	3
Over Voltage Category	II
Cooling Type	Natural cooling
Case Material	Meta
Color	White
Installation	Ground Installation
IP rating	IP 54
Protective Class	I
Warranty	10 years
Communication	CAN/ RS485
Protection Mode	Dual hardware protection
Battery Protection	Over-current/Over-voltage/Short circuit/ Under-voltage/Over temperature
Cycle Life	≥7000 cycles (@25±2°C, 0.3C / 0.4C, 100%DOD, 70%EOL)
Safety	Cell CE+CB
Safety	Pack TUV(IEC 62619, IEC 62040-1)
Hazardous Material Classification	9
Transportation	UN 38.3
● Testing conditions based on temperature 25℃ at the beginning of life. ● Total Energy/Usable Energy measured under specific conditions from BOOST 0.2C CC-CV
