General Parameter
|
||

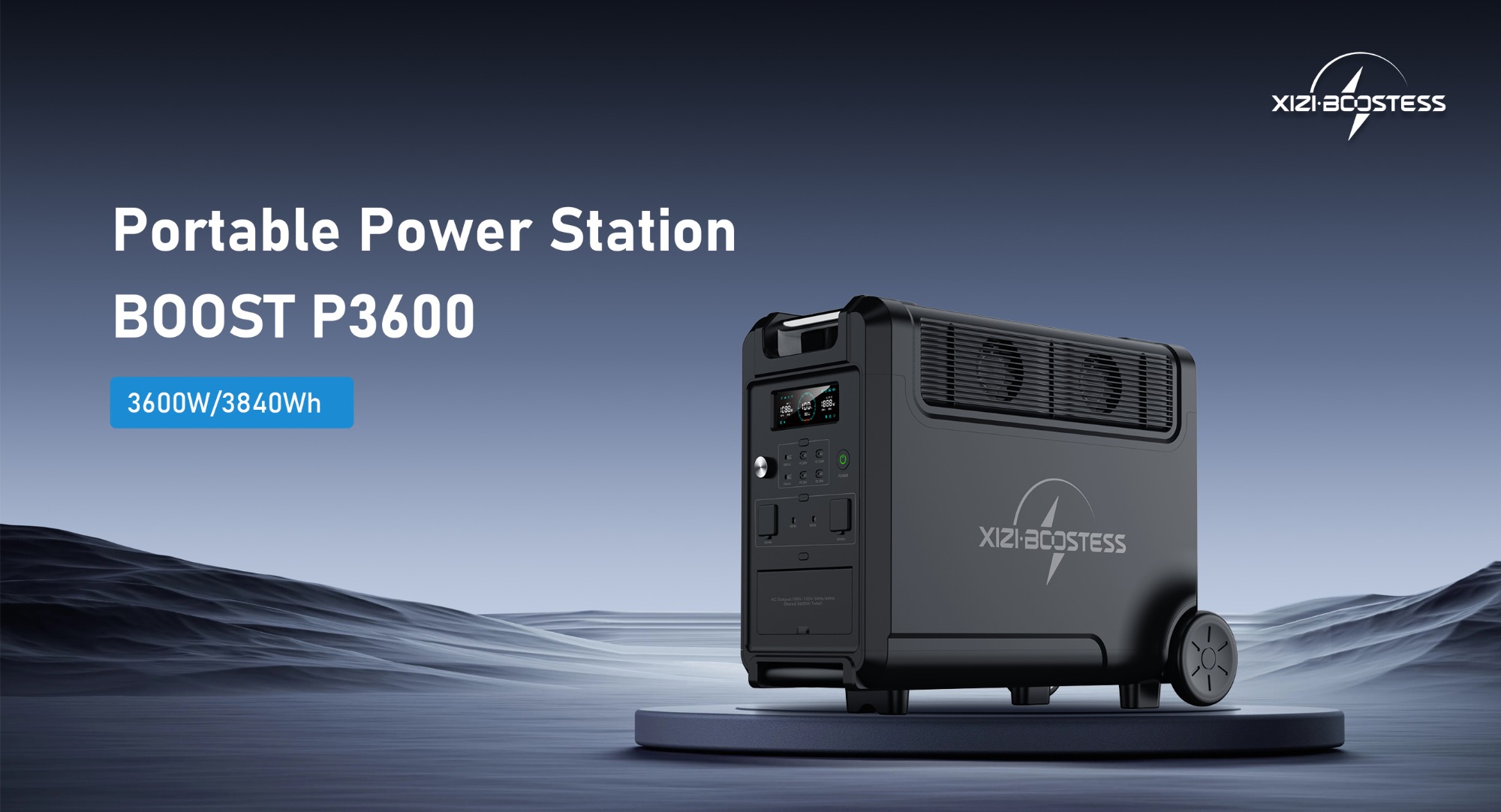

| Model | BOOST P3600 | |
| Dimension (L*W*H ) | 550*321*464mm | |
| Weight | 40.7kg | |
| Capacity | 3840Wh | |
| AC Charging | 100V-120V 1500W max ;220V-240V 2200W max | |

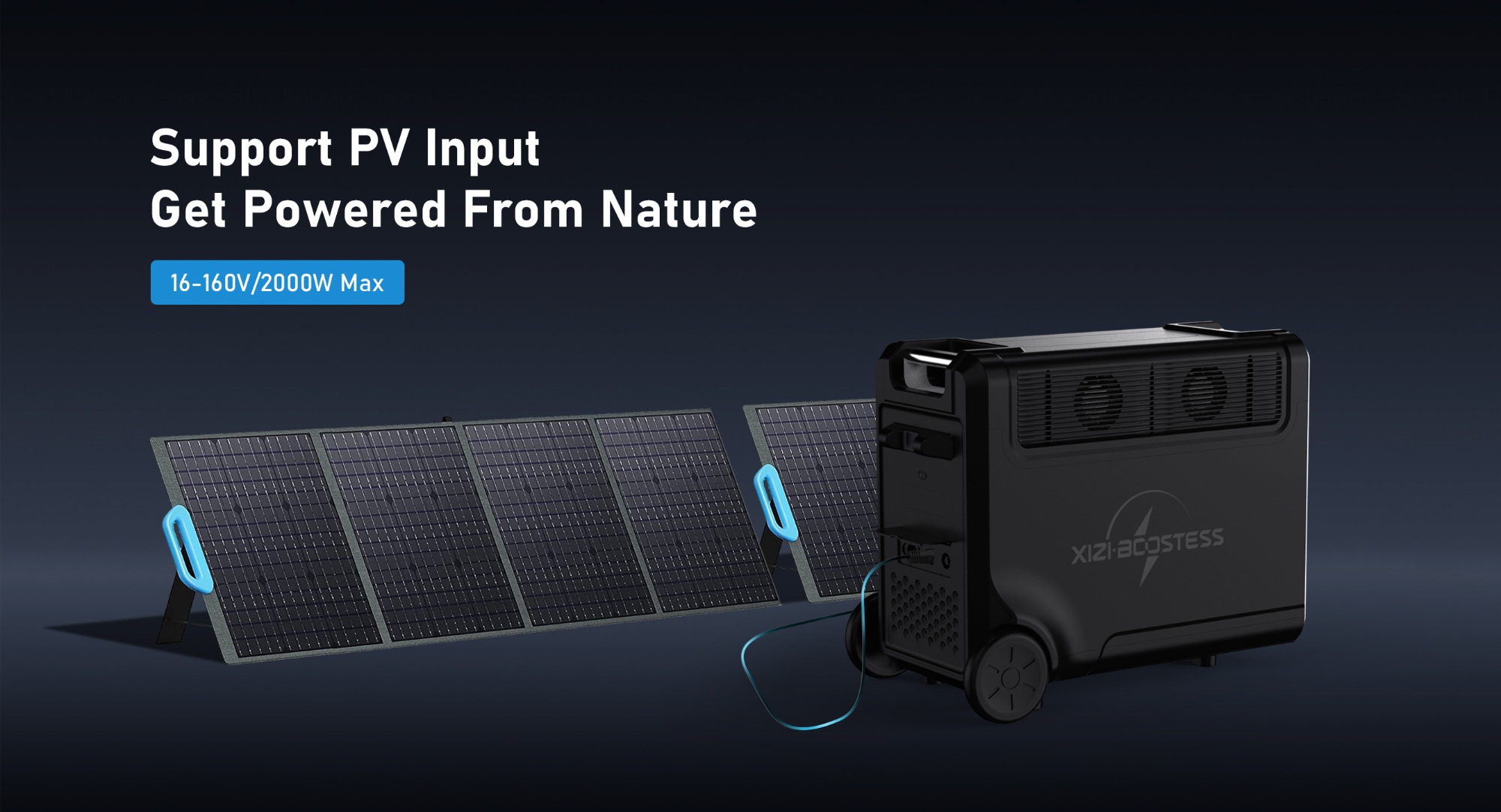

| XT90 Input | 12-160V 2000W max | |
| AC Output | 100V-120V,rated 3300W,220V-240V ,rated 3600W pure sine wave | |
| USB-A Output | (QC3.0 18W) *2 | |
| Type-C ① Output | (PD20W)*3 | |
| Type-C ② Output | (PD100W)*1 Included PD3.0 protocol | |
| DC 5521 Output | 12V/3A *2 | |
| XT60 Output | 12V/25A | |
| Car Charging Output | 12V/10A | |
| Shutdown Current | <500uA | |
| Working Temperature | -10~40℃ | |
| Environment Humidity | ≤90%RH | |
| Cycle Time | >3500 times | |
| Battery Parameter | ||
| Cell type | 40135 LiFePo4 | |
| Rated voltage of single battery | 3.2V | |
| Rated capacity of single batery | 20Ah | |
| Rated voltage of battery pack | 48V | |
| Output voltage range of the battery pack | 40V-54V | |
| Rated capacity of battery pac | 3840Wh | |
